High-Temperature Metal Belting

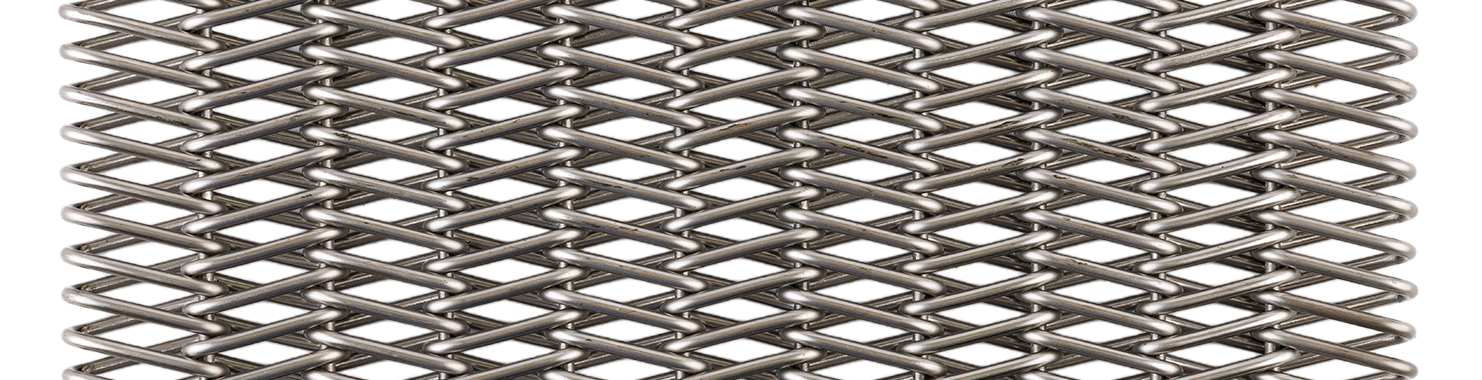

Double Balanced Weave belts provide a stronger edge and more coverage than a standard balance weave, as two sets of spirals are overlapping at each pitch.
DB-24-10-6-8
DB = double balance
24 = 24 loops of wire per foot width
10 = 10 spirals connected in a foot of length
6 = 6-gauge connecting pin (.192” diameter)
8 = 8-gauge spiral wire (.162” diameter)
Double balanced weave belts are most commonly used in elevated temperature applications for sintering, brazing and annealing.
Available in any material.
